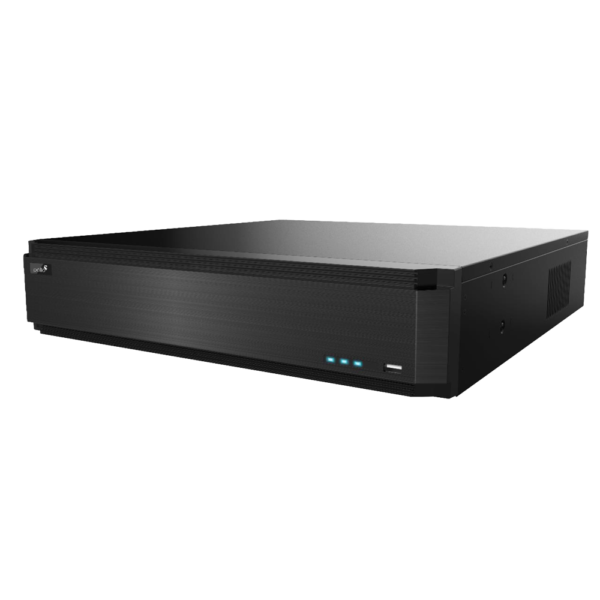

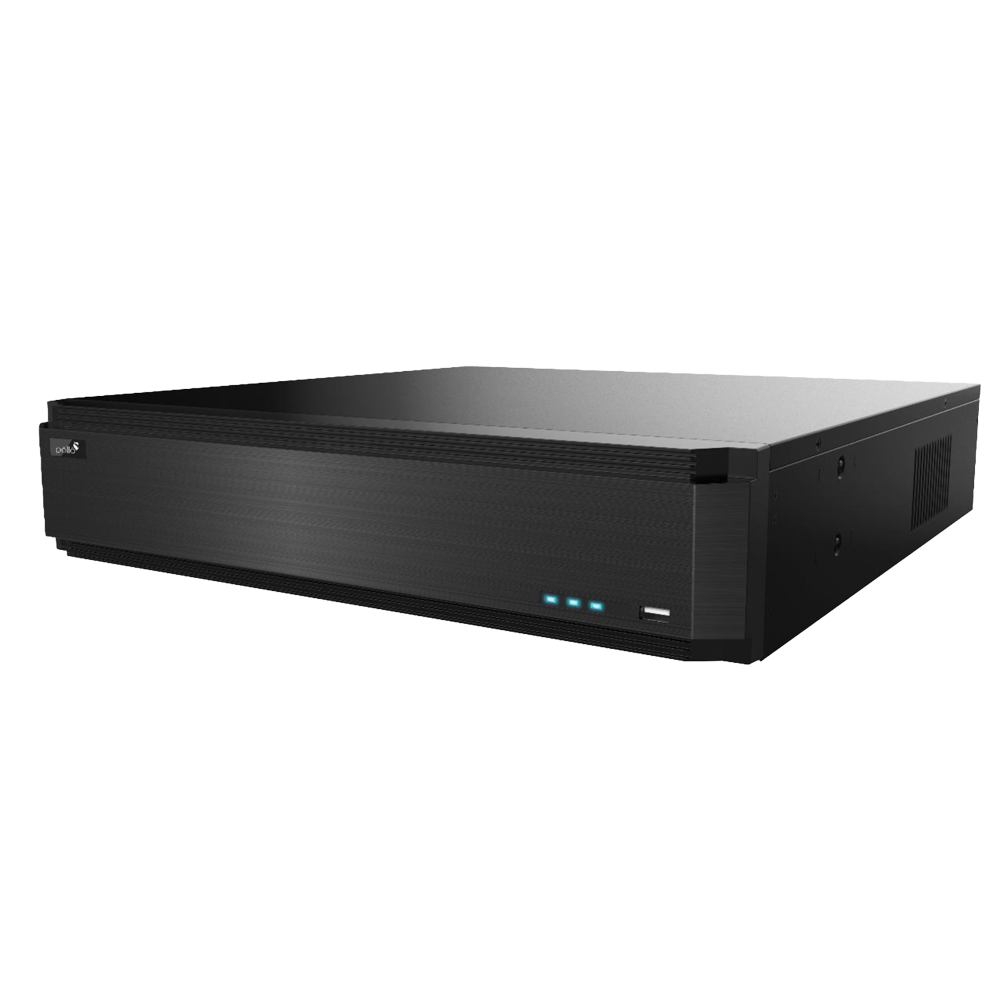

| Model No. |
PLC-1832H8/PM |
| Main Processor Chip |
Cortex A9 |
| Operation System |
Embedded Linux |
| Coding |
Standard H.264 High Profile |
| Local Video Input |
BNC×32 |
| Input Resolution |
TVI/AHD:5MP 20fps;4MP、3MP、1080P、720P、WD1 real time CVI:1080P,720P real time |
| Network Input/Access Bandwidth |
IPC×4 / 24Mbps |
| Output |
HDMI×1:3840×2160/1920×1080/1280×1024/1024×768 HDMI×1:1920×1080/1280×1024/1024×768 VGA×1:1920×1080/1280×1024/1024×768 |
| CVBS |
BNC×1: CVBS (used as the main or spot output) |
| Local Audio Input |
RCA×16 |
| Two-way audio |
RCA×1 |
| Local Output |
RCA×1 |
| Resolution |
5MP、4MP、4MP lite、3MP,1080P、720P、WD1 |
| Local Record Frame Rate |
5MP:10fps (PAL/NTSC) 4MP/3MP:12fps/15fps (PAL/NTSC) 4MP lite/1080P/720P/WD1:25fps/30fps (PAL/NTSC) |
| Bit Stream |
768Kbps-8Mbps |
| Mode |
Manual, timer, motion, sensor |
| Image Quality |
5 Level |
| Resolution |
4MP/3MP/1080P/960P/720P |
| IPC Record Frame Rate |
25fps (PAL)/30fps (NTSC) |
| Playback Channel |
16 CH |
| Interface |
RJ45 10 / 100 / 1000Mbps × 1 |
| Network Protocol |
TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181 |
| HDD |
SATA×8 |
| Maximum Capacity of HDD |
8T |
| USB Backup |
Yes |
| eSata Backup |
No |
| Alarm Input |
16 |
| Alarm Output |
4 |
| Communication |
RS485×2, connect to PTZ and keyboard |
| Remote |
Optional |
| USB |
USB2.0×1 (front panel), USB3.0×1 (rear panel) |
| Computer Case |
2U |
| Dimension |
430×453×100(W×D×H) |
| Power Supply |
ATX |
| Power Consumption |
≤ 40W (without HDD) |
| Work Environment |
-10 ～ 50 ℃，10% ～ 90% humidity |
