PLC-1532H8/PR
PLC-1532H8/PR
PLC-1532H8/PR

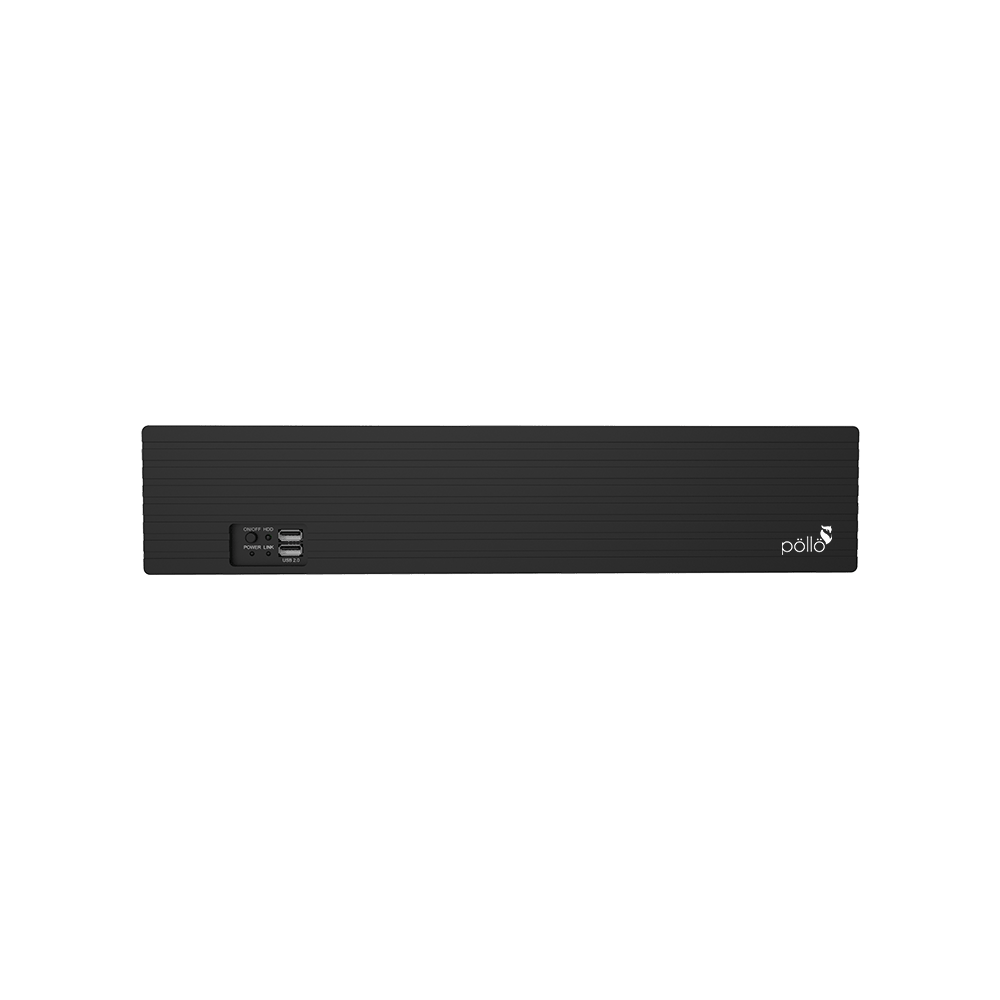

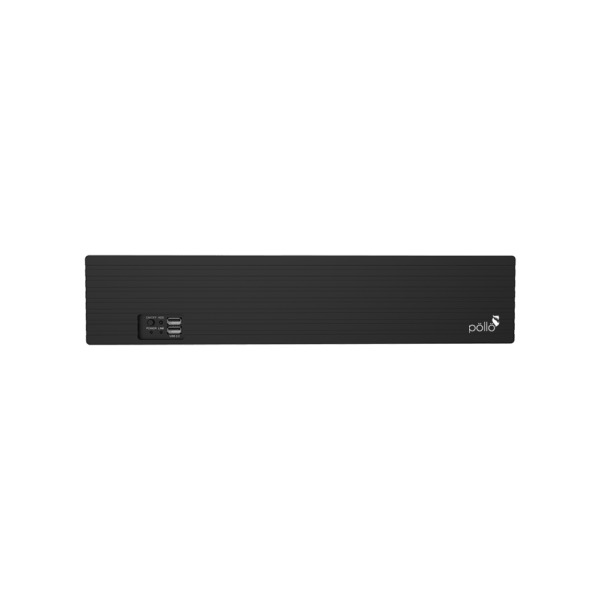

32 Channel Digital Video Recorder
• 32 Channel Input
• 5 MP Resolution
• AHD/TVI/CVI/IP
• H.265+/H.265
• Output: HDMI, VGA & CVBS
• 8 SATA upto 64TB
Description
| Model | PLC-1532H8/PR |
|---|---|
| Operating System | Embedded LINUX |
| Input | Analog: 32*1080P Analog + Network: 30*Analog(1080P)+2*network(Max 8MP), 28*Analog(1080P)+4*network(Max 8MP), 26*Analog(1080P)+6*network(Max 8MP), 24*Analog(1080P)+8*network(Max 8MP), 22*Analog(1080P)+10*network(Max 8MP), 20*Analog(1080P)+12*network(Max 8MP), 18*Analog(1080P)+14*network(Max 8MP), 16*Analog(1080P)+16*network(Max 8MP) 14*Analog(1080P)+18*network(Max 8MP), 12*Analog(1080P)+20*network(Max 8MP),10*Analog(1080P)+22*network(Max 8MP) 8*Analog(1080P)+24*network(Max 8MP), 6*Analog(1080P)+26*network(Max 8MP), 4*Analog(1080P)+28*network(Max 8MP) 2*Analog(1080P)+30*network(Max 8MP) Network: 32*network(Max 8MP)(Total incoming bandwidth ≤160M) |
| Input | Normal Mode: Analog: 32 * (AHD/TVI/CVI: 8MP; TVI/AHD: 5 MP; AHD/TVI/CVI: 4 MP; AHD/TVI: 3 MP; AHD/TVI/CVI: 1080p/720p |
| Input Channel | 32 Channel BNC |
| Signal Type | Analog/AHD/CVI/TVI 2.0/Network |
| Output | 1HD, 1 VGA, 1CVBS |
| Input | 12 Channel, RCA |
| Output | 1 Channel, RCA |
| Sensor Input | 16 Channel |
| Sensor Output | 4 Channel |
| Motion Detection | 32 Channel (Max. 32 Channel in Pure Network Mode) |
| Trigger Events | Recording, Email, Screen tips, Buzzer, Push Notifications (Motion Detection) |
| Email Alarm | Send Image to Designated E-mail |
| Interface | RS485 |
| Protocol | Pelco – D, Pelco – P |
| Baud Rate | 110 – 921600 |
| Address | 0 – 255 |
| VGA | Resolution: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz |
| HD Output | Resolution: 3840×2160/30Hz, 2560×1440/30Hz, 1920 × 1080P /60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Display Split | 32 Channel/25 Channel/16 Channel/9 Channel/8 Channel/4 Channel /1Channel |
| Privacy Masking | 3 Rectangular Zones (Each Camera) |
| OSD | Camera Title, Time, Video Loss, Alarm, Motion detection, Recording |
| Video Compression | H.265/H.265+/H.264/H.264+ |
| Audio Compression | G711u |
| Resolution | Half 1080P(960×1080);720P(1280×720);960H(P:960×576/N:960×480) |
| Video Quality | Worst/Worse/Ordinary/Well/Best |
| Record Rate | Analog: PAL:Half 1080P(960×1080 32*15fps),720P(1280×720 32*15fps), 960H(960×576 32*22fps) NTSC:Half 1080P(960×1080 32*15fps),720P(1280×720 32*15fps), 960H(960×480 32*22fps) Pure IP(H.265): PAL:8MP@17×25fps,5MP@26×25fps,4MP@32x25fps,3MP@32×25fps,1080P@32×25fps,960P@32× 25fps,720P@32×25fps,D1@32×25fps NTSC: 8MP@17×30fps,5MP@26×30fps,4MP@32×30fps,3MP@32×30fps,1080P@32×30fps, 960P@32×30fps, 720P@32×30fps, D1@32×30fps |
| Record Mode | Manual/Timer/Motion Detection |
| Decode Capability | 9 Channel 1080p @ 30 fps |
| Sync Playback | Pure Analog: 32 Channel 1080N @ 15 fps, 16 Channel 5 MP @ 6 fps,16 Channel 5 MP_LITE @ 10 fps, 16 Channel 4 MP @ 8 fps, 16 Channel 4 MP_LITE @ 15 fps, 16 Channel 3 MP @ 9 fps, 16 Channel 1080p @ 15 fps, 16 Channel 1080N @ 25 fps Mix Mode: 1 Channel 4K @ 30 fps, 2 Channel 5MP @ 30 fps, 2 Channel 4 MP @ 30 fps, 3 Channel 3 MP @ 30 fps, 4 Channel 1080p @ 30 fps, 4 Channel 960p @ 30 fps, 4 Channel 720p @ 30 fps Pure IPC: 2 Channel 4K @ 30 fps, 4 Channel 5 MP @ 30 fps, 4 Channel 4 MP @ 30 fps, 5 Channel 3 MP @ 30 fps, 9 Channel 1080p @ 30 fps, 9 Channel 960p @ 30 fps, 9 Channel 720p @ 30 fps |
| Remote Playback | 4 Channel/1 Channel |
| Search Mode | All, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Fast Play, Rewind, Digital Zoom, Full screen |
| Smart Phone Playback | 4 Channel |
| Backup Mode | USB Device (Format FAT 32)/Network/FTP |
| Interface | 1 RJ45 10M/100/1000M Adaptive Ethernet Interface |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, P2P |
| DDNS | DynDNS, Change-IP, No-IP, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE |
| Web Browser | IE8-11, Google Chrome (Lower Than Ver44), Firefox (Lower Than Ver53) |
| CMS Software | Supports Windows 7/ Windows 8/Windows 10 |
| Extra Stream | CIF/D1(1-22fps) |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Interface Type | 8 SATA Interface |
| Storage Capacity | 8 SATA Hard Disk (3.5″ SATA, Up to 64TB) + 1 E-SATA Interface (Up to 8TB) |
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farsi German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek |
| UTC Control | Yes |
| USB Interface | 2 USB 2.0 Interfaces |
| Power consumption | AC 115~230v ≤35W (Without HDD) |
| Working Environment | -10 ℃ – 55 ℃/10 – 90% |
| Dimension (W×D×H) | 440*450*95(mm) |
| Weight | 9.8kg (Without HDD) |
| PLC-1532H8/PR | Datasheet of PLC-1532H8/PR |
|---|
