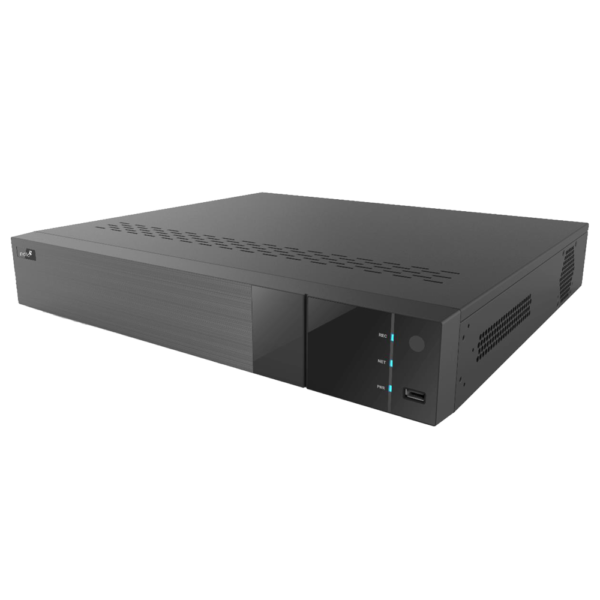

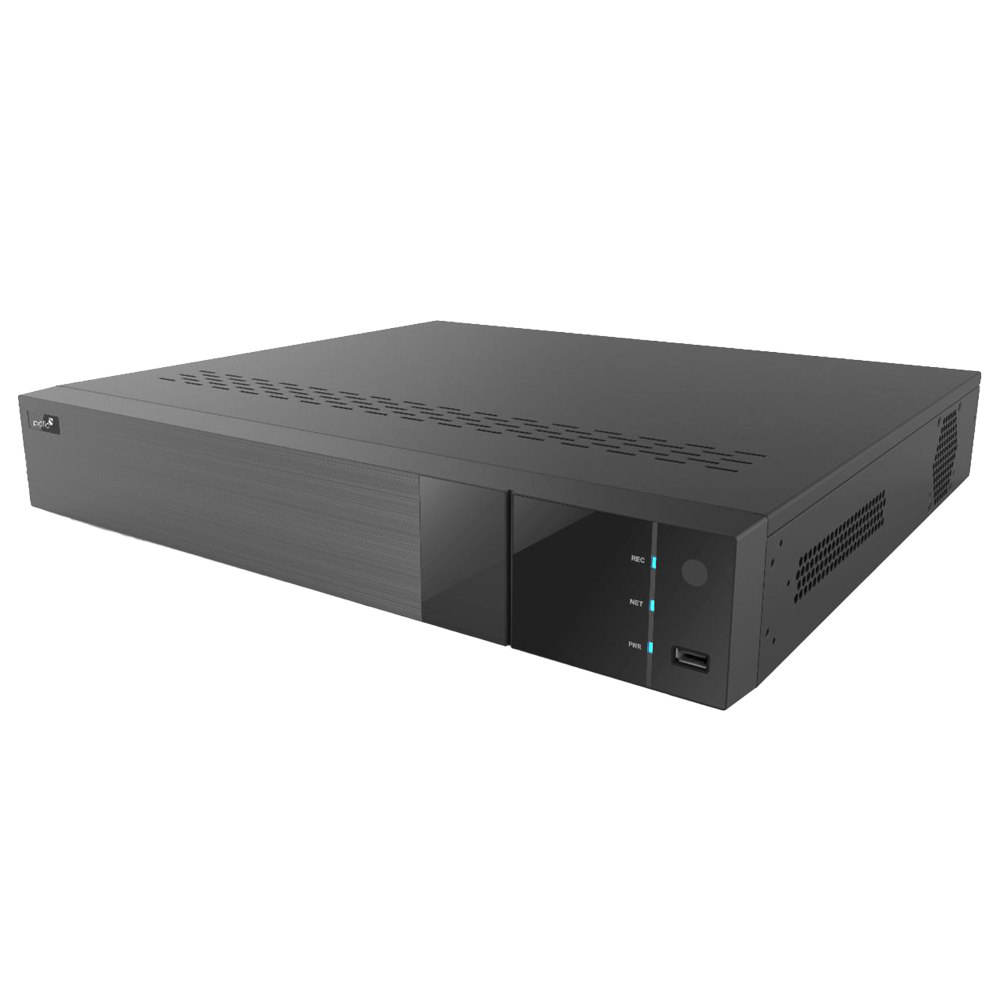

PLC-1232H4/PM

Description

Model No.	PLC-1232H4/PM
Main Processor Chip	Cortex A9
Operation System	Embedded Linux
Coding	Standard H.264 High Profile
Local Video Input	BNC×32
Input Resolution	TVI/CVI/AHD:1080P、720P、WD1 real time
Network Input/Access Bandwidth	IPC×4 / 24Mbps (1080P Lite Record Mutual exclusion）
Output	HDMI×1:1920×1080/1280×1024/1024×768 VGA×1:1920×1080/1280×1024/1024×768
CVBS	BNC×1: CVBS (used as the main or spot output)
Local Audio Input	RCA×4
Two-way audio	Take up channel one audio input
Local Output	RCA×1
Resolution	1080P、1080P lite、720P、WD1
Local Record Frame Rate	1080P:12fps (PAL)/15fps (NTSC） 1080P Lite/720P/WD1:25fps (PAL)/30fps (NTSC）
Bit Stream	768Kbps-8Mbps
Mode	Manual, timer, motion, sensor
Image Quality	5 Level
Resolution	3MP/1080P/960P/720P
IPC Record Frame Rate	25fps (PAL)/30fps (NTSC)
Playback Channel	16 CH
Interface	RJ45 10M / 100M / 1000Mbps × 1
Network Protocol	TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、 GB28181
HDD	SATA×4
Maximum Capacity of HDD	8T
USB Backup	Yes
eSata Backup	No
Alarm Input	4
Alarm Output	1
Communication	RS485×1, connect to PTZ or keyboard
Remote	Optional
USB	USB2.0×1 (front panel), USB3.0×1 (rear panel)
Computer Case	1.5U
Dimension	440×390×70(W×D×H)
Power Supply	ATX
Power Consumption	≤ 40W (without HDD)
Work Environment	-10 ～ 50 ℃，10% ～ 90% humidity
