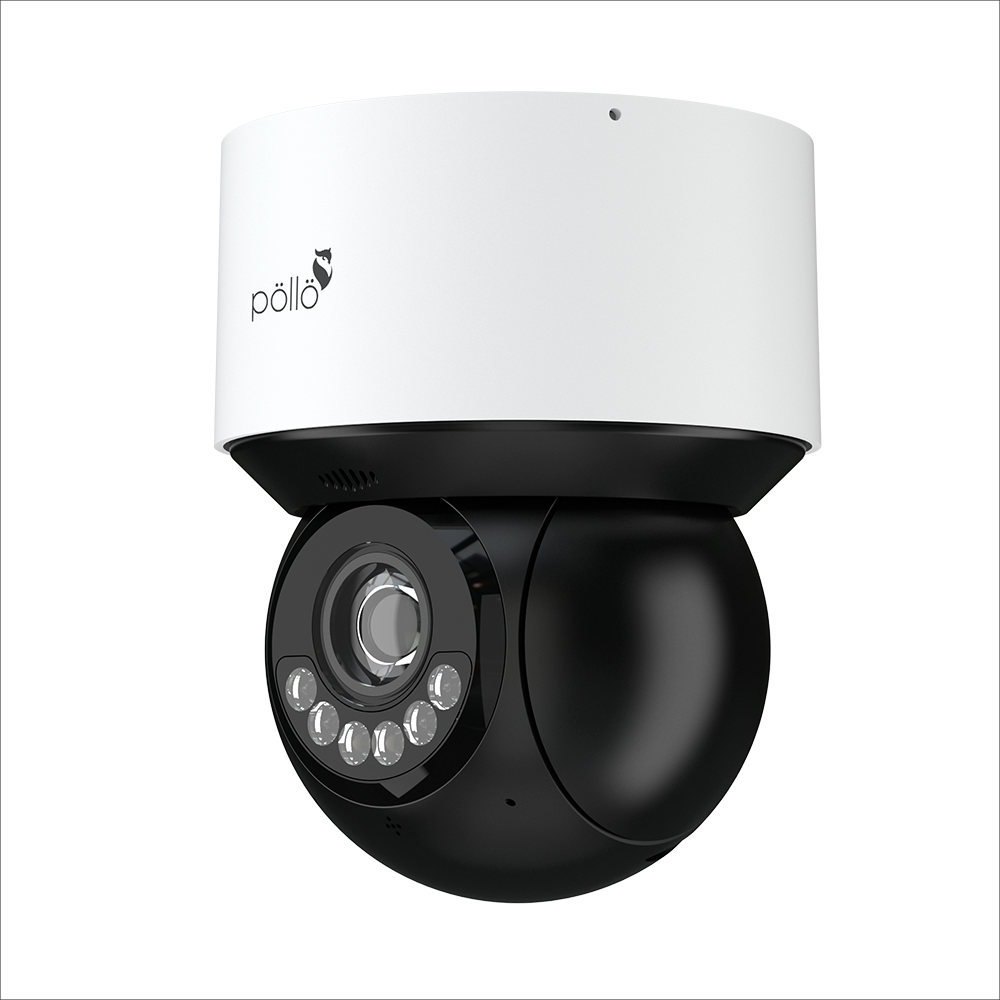

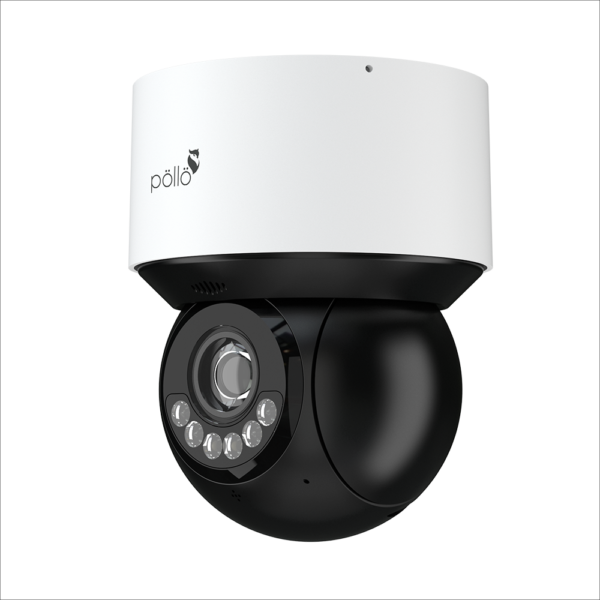

| Model Number |
PLC-944-AD-DL5/PM |
| Image Sensor |
1/2.7″ progressive scan CMOS with BSI and NIR+ technology |
| Min. Illumination |
Colour 0.01 Lux @ (F1.6 AGC ON) B/W 0.002Lux @ (F1.6 AGC ON);0Lux with IR |
| Image Setting |
Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client |
| Shutter Speed |
50Hz: 1/25s~1/25,000s, 60Hz: 1/30s~1/30,000s |
| White Balance |
Auto/Manual/Indoor/Outdoor |
| Gain |
Auto/Manual |
| Day & Night |
Auto/Manual |
| S/N Ratio |
≥52dB |
| 3D DNR |
Auto/Manual |
| AE Enhancement |
BLC, HLC, WDR |
| Privacy Mask |
4 Programmable privacy masks |
| Picture Overlay |
Logo picture could be overlaid on video with 128x128pixels, 24bits JPG format |
| Font Overlay |
Max 15 characters per line, 8 lines max, white colour or red colour |
| Focus Length |
f=2.8-12mm lens,4x optical |
| Zoom Speed |
About 1.6s (Wide->tele) |
| Field of View |
Horizontal: 97° to 31°±5%; Vertical: 51° to 18°±5%; Diagonal: 115° to 36°±5% (widetele) |
| Working Distance |
Wide: 0.3m ~ INF; tele: 0.5m ~ INF |
| Aperture Range |
F1.6~ F2.7 (wide-tele) |
| IR Cut Filter |
Electrical switchable ICR |
| Pan Range |
0~355° |
| Pan Speed |
Configurable, from 0.1~80°/s; Pre-set speed: 80°/s |
| Tilt Range |
From -5° to 90° |
| Tilt Speed |
Configurable, from 0.1°~ 60°/s, pre-set speed: 60°/s |
| Pan/Tilt Action Interval |
At least 10 seconds, adjustable |
| Proportional Zoom |
Yes |
| pre-set |
300 |
| Cruise |
8 cruises, up to 16 pre-sets for each cruise |
| Trace |
4 traces, record time over 3 minutes for each trace |
| Power-off Memory |
Support |
| Action Mode |
pre-set/Cruise/Trace/Auto Scan/Random Scan |
| 3D Positioning |
Support |
| PTZ Position Display |
Support |
| Schedule Task |
pre-set/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot |
| IR Distance |
Up to 50m,4pcs of IR array into 2 groups, auto switch with zoom ratio |
| Smart IR |
Yes |
| White Light Distance |
Up to 30m, 2pcs of White LED Array |
| White Light Mode |
Flashing mode, torque mode, time interval adjustable |
| Max Resolution |
2560×1440 |
| Main Stream |
25fps (2560×1440, 2048×1536, 1920×1080, 1280×960, 1280×720); 30fps (2560×1440, 2048×1536, 1920× 1080, 1280× 960, 1280× 720) |
| Sub Stream |
25fps (704 × 576, 640 × 480, 352 × 288) 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream |
25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression |
Smart H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 Encoder |
H.264/AVC codec BP/MP/HP, level 5.1 |
| H.265 Encoder |
H.265/HEVC codec MP, level 5.0 |
| Video Bit rate |
64Kbps ~ 16Mbps |
| Audio Compression |
G.711 A/U |
| Audio Bit rate |
64Kbps |
| Protocols |
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE |
| User / Host |
Up to 16 users, 3 levels: Administrator, Advanced User and Normal User |
| Security Measures |
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering |
| Basic Event |
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, SD full, SD error) |
| Face Recognition |
Default do not support human face detection capture, face comparison (customized per request) |
| Road Traffic |
Vehicle detecting and tracking, etc. |
| Smart Detection |
Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection, etc. |
| Smart Tracking |
Smart tracking of human or vehicle, auto/manual |
| Active Deterrence |
Flash strong white light and predefined voice upon invaders detected. Support 10+ different predefined voice clips |
| Two-way talk |
Support two-way talk |
| Ext. Audio Interface |
1-ch audio input (mic in),2.0-2.4Vp-p,1kΩ±10%;1-ch audio output (line out), line level, impendance:600 Ω; |
| Built-in speaker |
Yes, One Speaker, 4Ω, 2.5Watt. Rotation with camera, up to 30m distance audible |
| Built-in MIC |
1channel, rotation with camera lens direction, up to 8m distance voice recordable. |
| Audio device switch |
Default use built-in speaker and MIC, manually switch to external |
| Alarm interface |
1CH alarm input (Dry contact); 1CH alarm output |
| Alarm Linkage |
Alarm actions, such as pre-set, Cruise, Trace, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card, Send Email, etc. |
| Network Interface |
1 RJ45 10M/100M Adaptive Ethernet (Support PoE+) |
| Storage Slot |
Standalone memory card chamber, support micro-SD/TF card, up to 256GB |
| Reset Button |
Yes |
| Heat and Fan |
Built-in temperature sensor, auto shut down at over-temperature; auto heat at cold start. No built-in fan. |
| Water Removal |
Dust and Water-resistant coating |
| API |
ONVIF, support Pollo SDK and third-party management platform |
| Client |
PVMS Plus and the third-party client, free iOS and Android APP |
| Web Browser |
IE8-11, plug-in free |
| App Version |
5.1.1 and later |
| Languages |
Czech; English, German; Hungarian; Italian; Japanese; Korean; Portuguese, Polish; Russian, Romanian, Spanish; Spanish (Mexico); Simplified Chinese; Turkish; Traditional Chinese. etc. |
| Power |
DC12V±20%, 2000mA,orPoE+ (802.3.at,class 3), AVG 3.3W, MAX14.9W at day;18.9W at night(LED on+ Speaker on + PTZ working) |
| Working Condition |
-40°C ~ 65°C (-40°F ~ 149°F) IR off, -40°C ~ 55°C IR on; Cold start≥- 25°C(1Hour waiting), ≤90%RH |
| Storage Condition |
-40°C ~ 70°C ; ≤ 95% RH |
| Protection |
6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Shield Material |
Main body: Aluminium Alloy(ADC12),Decoration: Polymer(Glass fiber and Plastic) |
| Dimensions |
130mm x 162mmH ( 5.1′x 6.4′) |
| Net Weight |
Approx. 1.2Kg (2.645lb.) |
| Certification |
IP66,IK10(include lens window), ROHS, CE, FC,UKCA |
