| Model No. |

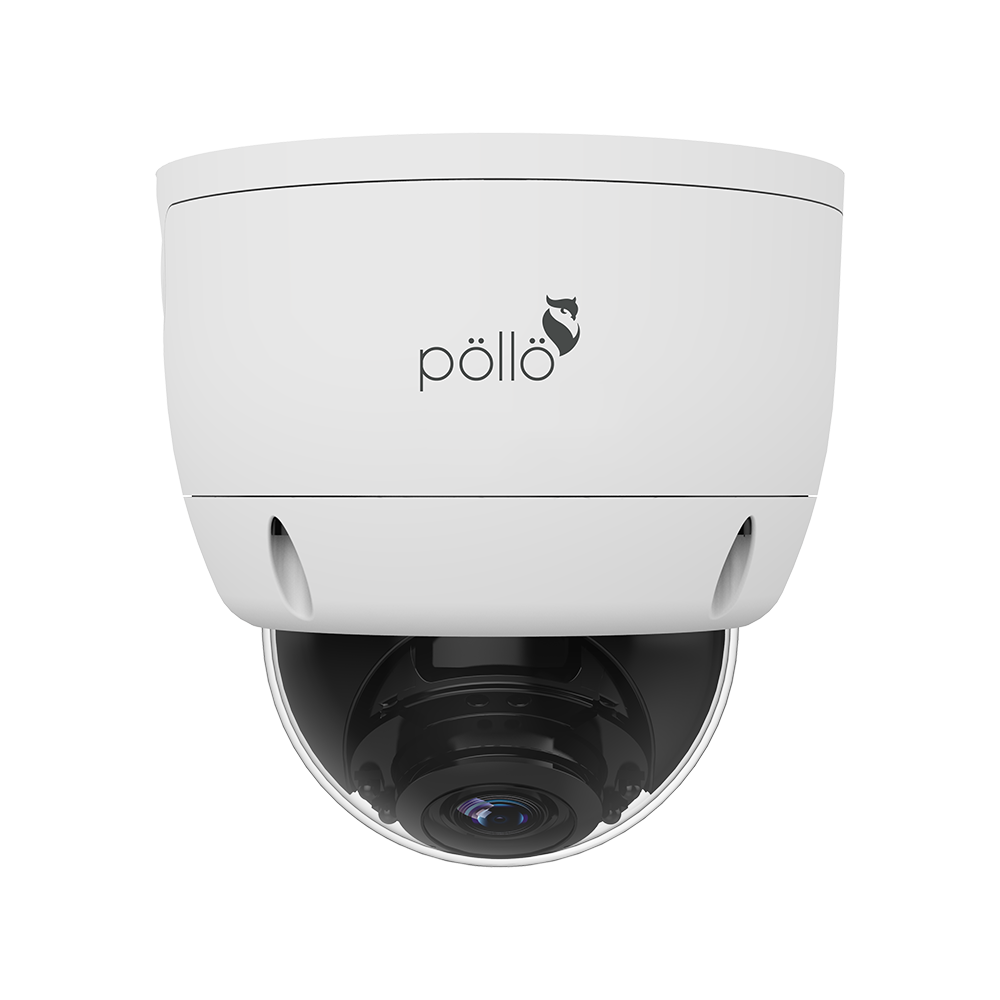

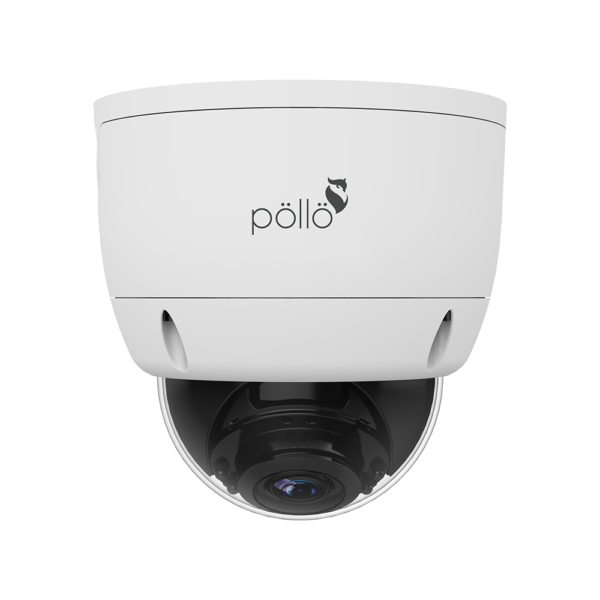

PLC-435M-MZ-AI-IR3/PR |
| Imaging Device |
1/2.7″ |
| Effective Pixels |
5MP 2592(H)×1944(V) |
| Scanning System |
Progressive CMOS |
| Min. Illumination |
Color 0.003lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON |
| Focal Length (Zoom Ratio) |
2.7-13.5mm |
| Max. Aperture Ratio |
F No. 1.8(W) ~ 3.3(T) |
| Angular Field of View |
Horizontal: 31 ~102°, Vertical: 23 ~ 73°, Diagonal: 38 ~ 138° |
| Min. Object Distance |
0.3m~INF |
| Lens Type |
Motorized |
| IR Viewable Length |
Up to 30m |
| Camera Title |
On/Off |
| Day & Night |
IR cut filter with auto switch Day/Night/Auto/Image/Schedule） |
| Backlight Compensation |
Off/On (5 Zone) |
| Wide Dynamic Range |
WDR |
| Digital Noise Reduction |
3D DNR |
| Motion Detection |
Off/On (8 Level) |
| Privacy Masking |
Off/On (4 Zone, Rectangle) |
| Gain Control |
Auto |
| White Balance |
Auto/Manual |
| Electronic Shutter Speed |
1/5 ~ 1/20000s |
| Mirror |
Flip/Rotation |
| On-Board Storage |
Micro SD slot, up to 256GB |
| Alarm |
1 input, 1 output |
| Audio |
1 input (RCA), 1 output (RCA |
| Hardware Reset |
Yes |
| Smart Feature |
PID, LCD, PD/VD, SOD, CC, CD, QD, Heat MAP, RSD, LPD, FD |
| Ethernet |
RJ45(10/100BASE-T) |
| Video Compression Format |
H.265/H.264 |
| Resolution |
Main Stream @30fps 5MP(2592×1944), 4MP(2592×1520), 3MP(2304×1296), 1080P(1920×1080), 960P(1280*960) Sub Steam @30fps 1080P(1920×1080)，720P(1280×720), VGA(640×480) Mobile Stream @30fpsVGA(640×480),QVGA（320×240） |
| Video Quality Adjustment |
256Kbps ~ 8Mbps |
| Bitrate control method |
CBR/VBR |
| IP |
IPv6 |
| Streaming Capability |
Triple-Stream (Main/Sub/Mobile) |
| Protocol |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Web browser |
IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
| Security |
IP address filter; complicated password; Authenticated username and password |
| Streaming Method |
IP address filter; complicated password; Authenticated username and password |
| Application Programming Interface |
ONVIF (Profile S/G/T) |
| Operating Conditions |
-35～+60°C/less than ≤ 95% RH |
| Ingress Protection |
IP67 |
| Input Voltage / Current |
D12V/PoE (IEEE802.3af) |
| Power Consumption （IR OFF） |
3.5W-4.5W |
| Power Consumption （IR ON） |
5.5W-7.5W |
| Material |
Metal |
| Dimensions (H x W x D) |
150*109mm |
| Weight |
972g |
