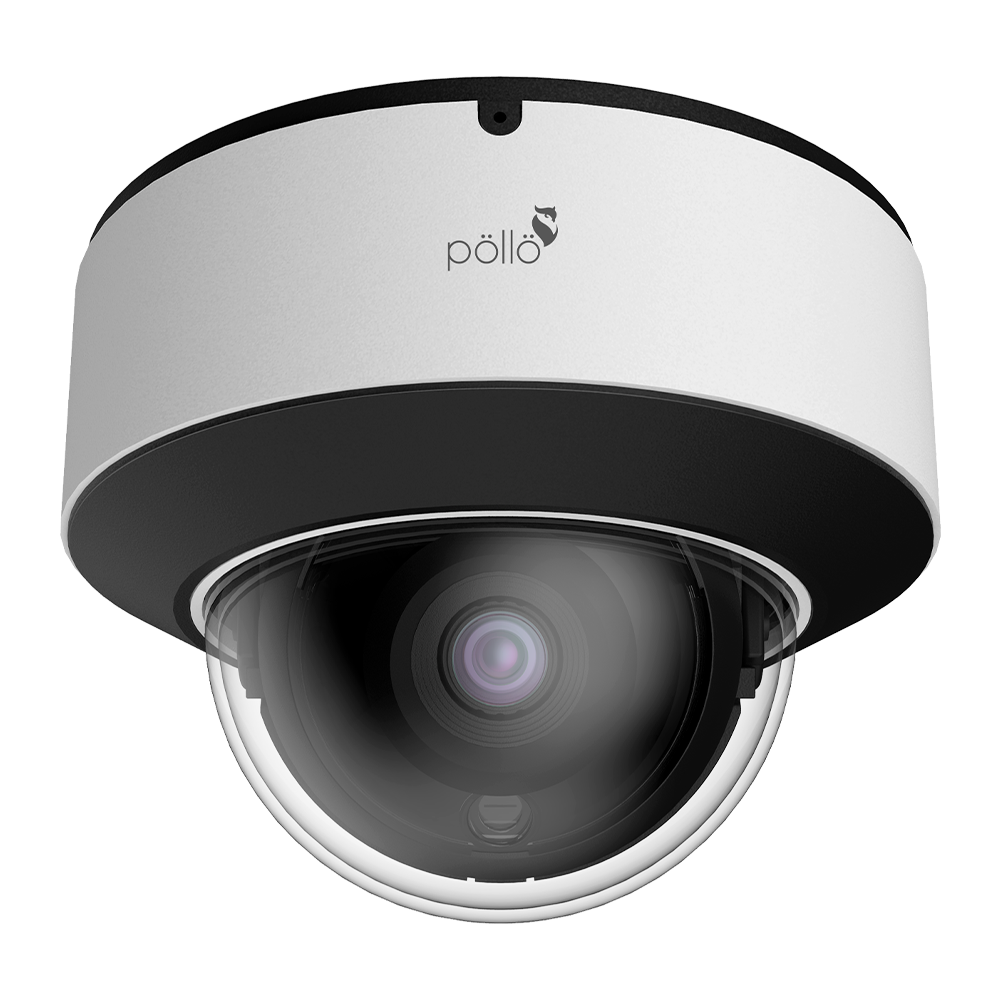

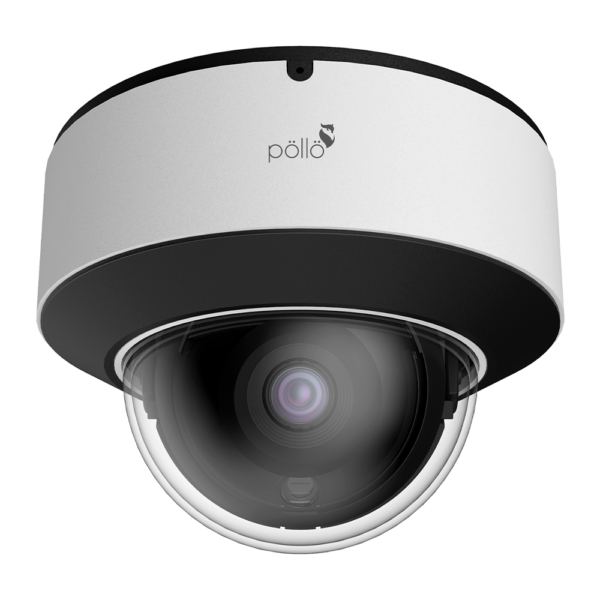

| Model No. |
PLC-432M-AI-IR3/PM |
| Image Sensor |
1 / 2.8″ CMOS |
| Image Size |
1920 × 1080 |
| Electronic Shutter |
1 s ~ 1 / 100000 s |
| Iris Type |
Fixed Iris |
| Minimum Illumination |
0.005 lux@F1.6,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR |
| Lens |
2.8 mm@F1.6, horizontal FoV: 108°; vertical FoV: 75.3°; diagonal FoV:115.2° 3.6 mm@F1.6, horizontal FoV: 89°; vertical FoV: 57.8°; diagonal |
| Focus |
Fixed |
| Lens Mount |
M12 |
| Day& Night |
ICR |
| Wide Dynamic Range |
120dB |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes |
| Digital NR |
3D DNR |
| Angle Adjustment |
Pan: 0°~355°; Tilt : 0°~67°, Rotation : 0°~355° |
| H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240 |
| Main stream |
60Hz:1080P/720P(1 ~ 30fps ); 50Hz:1080P / 720P( 1 ~ 25fps ) |
| Sub stream: |
60Hz:720P/D1/CIF/480×240 (1~30fps); 50Hz:720P/D1/CIF/480×240 (1~25fps) |
| Third stream: |
60Hz:D1/CIF /480×240 (1~30fps); 50Hz:D1/CIF/480×240 (1~25fps) |
| Bit Rate |
64 Kbps ~ 6 Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A / U |
| Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Network |
RJ 45 |
| Video Output |
No |
| Audio |
1CH audio input; Built-in MIC × 1 |
| Storage |
Built-in micro-SD card slot; up to 256GB |
| Reset |
Yes |
| Alarm |
1CH alarm input; 1CH alarm output |
| Perimeter Protection |
Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non- motor vehicle classification) |
| Target Counting |
Line crossing counting, region intrusion counting, heat map |
| Exception Detection |
Scene change, video blur and video colour cast detection |
| Face Detection |
Face detection and face capture |
| Object Detection |
Abandoned object detection, missing object detection |
| Remote Monitoring |
Web browsing, CMS remote control |
| Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro-SD card storage |
| Smart Alarm |
Motion detection, SD card error, SD card full |
| General Function |
Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction |
| PoE |
Yes, IEEE802.3af |
| IR Distance |
20 ~ 30 m |
| Ingress Protection |
IP67&IK10 |
| Power Supply |
DC12V/PoE |
| Power Consumption |
< 7.5W |
| Operating Environment |
– 30 °C ~ 60°C (-22 °F~140°F) E42Humidity: less than 95 % non condensing |
| Dimensions (mm) |
Φ 119 × 87.8 |
| Weight (net) |
Approx.0.65KG |
| Installation |
Ceiling mounting (wall mounting available with the junction box and bracket) |
| Certificate |
CE, FCC |
| Environmental Protection |
Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
