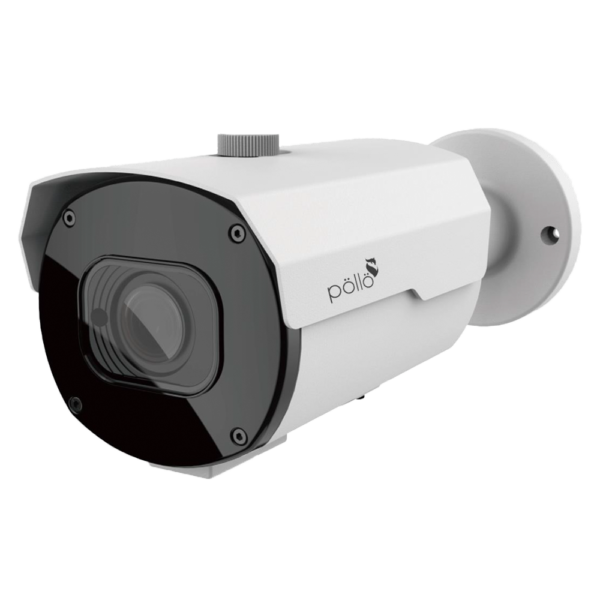

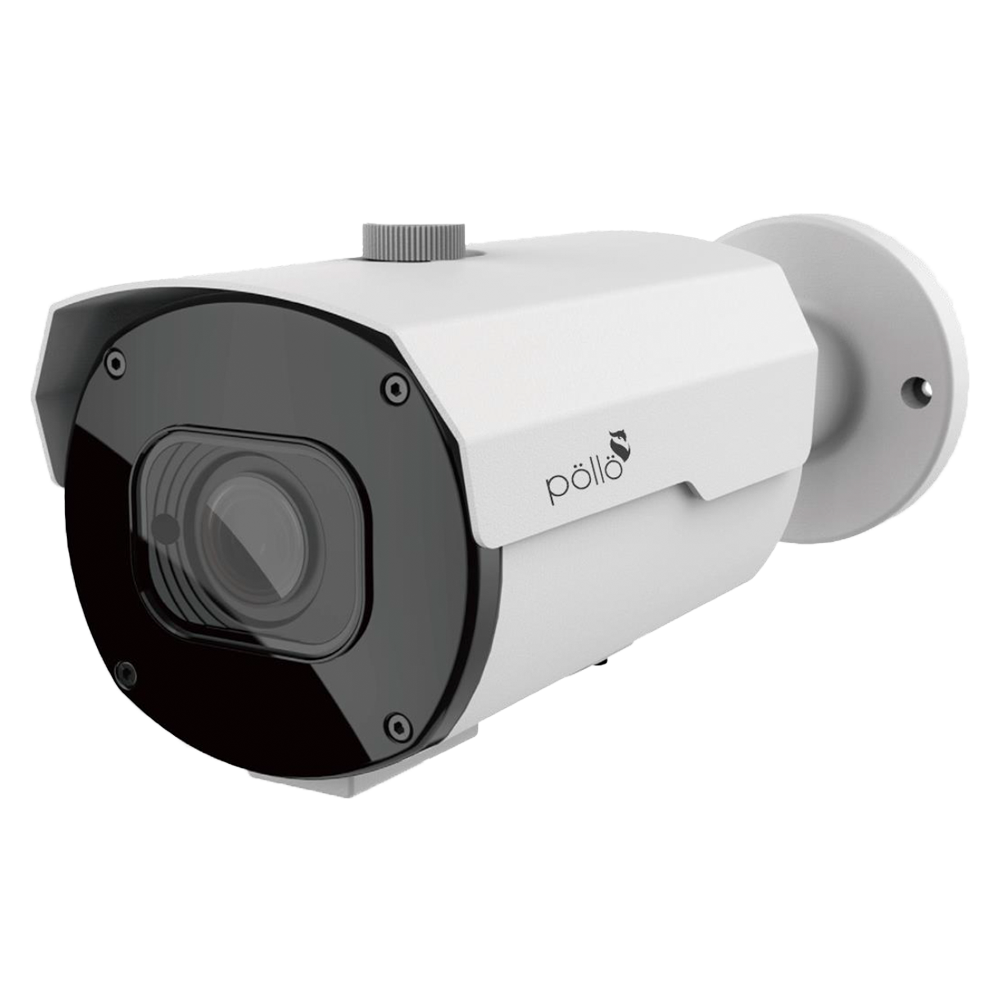

PLC-428M-MZ-AI-IR5/PR

Description

Model No.	PLC-428M-MZ-AI-IR5/PR
Imaging Device	1/2.8″
Effective Pixels	8MP 3840(H)×2160(V)
Scanning System	Progressive CMOS
Min. Illumination	Color 0.009lux @ F1.6(AGC ON); B/W 0 lux @ IR ON
Focal Length (Zoom Ratio)	2.7-13.5mm
Max. Aperture Ratio	F No. 1.8 (W) ~ 3.3(T)
Angular Field of View	Horizontal: 33 ~111°, Vertical: 18 ~ 57°, Diagonal: 37 ~ 134°
Min. Object Distance	0.8m~INF(W), 1m~INF(T)
Lens Type	Motorized
IR Viewable Length	Up to 50m
Camera Title	On/Off
Day & Night	IR cut filter with auto switch Day/Night/Auto/Image/Schedule）
Backlight Compensation	Off/On (5 Zone)
Wide Dynamic Range	WDR
Digital Noise Reduction	3D DNR
Motion Detection	Off/On (8 Level)
Privacy Masking	Off/On (4 Zone, Rectangle)
Gain Control	Auto
White Balance	Auto/Manual
Electronic Shutter Speed	1/5 ~ 1/20000s
Mirror	Flip/Rotation
On-Board Storage	Micro SD slot, up to 256GB
Alarm	1 input, 1 output
Audio	1 input (RCA), 1 output (RCA
Hardware Reset	Yes
Smart Feature	PID, LCD, PD/VD, SOD, CC, CD, QD, Heat MAP, RSD, LPD, FD
Ethernet	RJ45(10/100BASE-T)
Video Compression Format	H.265/H.264
Resolution	Main Stream 30fps 8MP(3840×2160), 5MP(2592×1944,3072×1728), 4MP(2592×1520), 3MP(2304×1296), 1080P(1920×1080), 960P(1280*960), 20P(1280×720), Sub Steam 30fps 1080P(1920×1080), 720P(1280×720), VGA(640×480) Mobile Stream 30fps VGA(640×480), QVGA（320×240）
Video Quality Adjustment	256Kbps ~ 16Mbps
Bitrate control method	CBR/VBR
IP	IPv6
Streaming Capability	Triple-Stream (Main/Sub/Mobile)
Protocol	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Web browser	IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
Security	IP address filter; complicated password; Authenticated username and password
Application Programming Interface	ONVIF (Profile S/G/T)
Operating Conditions	-35～+60°C/less than ≤ 95% RH
Ingress Protection	IP67
Input Voltage / Current	D12V/POE(IEEE802.3af
Power Consumption （IR OFF）	3W-4W
Power Consumption （IR ON）	7W-9W
Material	Metal
Dimensions (H x W x D)	24287.483.88mm
Weight	811g

PLC-428M-MZ-AI-IR5/PR	Datasheet of PLC-428M-MZ-AI-IR5/PR
