| Model |

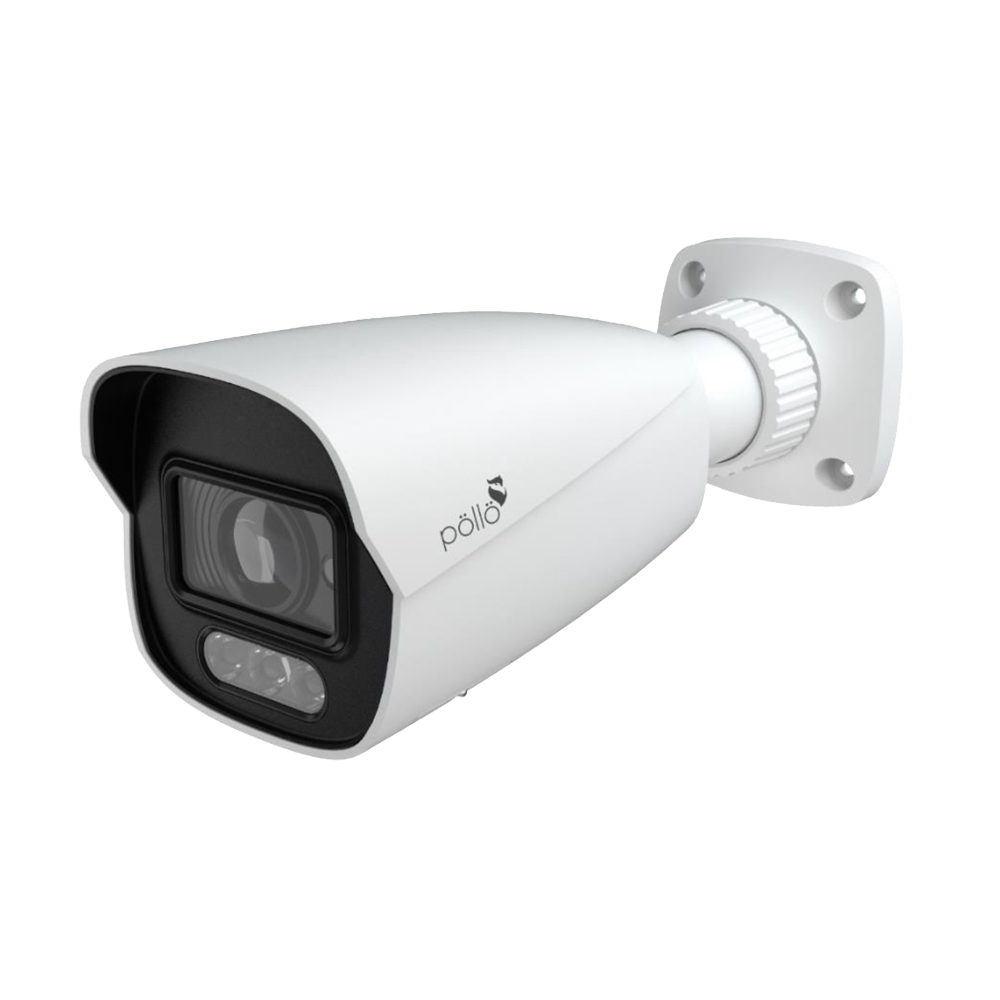

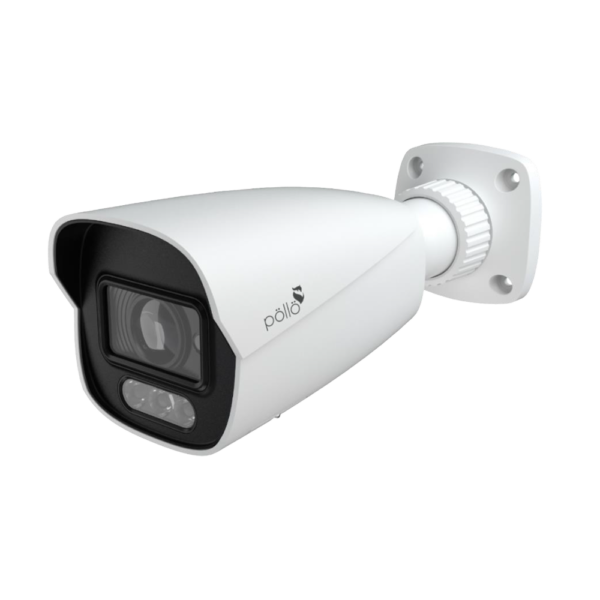

PLC-428M-AD-DL5/PM |
| Image sensor |
1 / 1.8″ CMOS |
| Image Size |
3840 × 2160 |
| Electronic Shutter |
1 / 4s ~ 1 / 100000 s |
| Iris Type |
Fixed Iris |
| Min. Illumination |
0.008lux@F1.6, AGC ON,0 lux with IR, 0 lux with LED |
| Lens |
2.8 mm@F1.6, H.FoV:109°; V.FoV:57°; D.FoV:132°; 3.6 mm@F1.6, H.FoV: 88°; V.FoV:51°; D.FoV:100° |
| Focus |
Fixed |
| Lens Mount |
M12 |
| Wide Dynamic Range |
120dB |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes |
| Digital NR |
2D/3D DNR |
| S/N Ratio |
≥50dB |
| Angle Adjustment |
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
| Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
8MP(3840×2160),6MP(3200×1800),4MP(2688×1520), 2K(2560×1440), 1080P (1920 ×1080),720P(1280×720), D1, VGA(640×480), 640×360, CIF, 480×240 |
| Main Stream |
8MP/6MP/4MP/2K/1080P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Sub Stream |
1080P(60Hz/50Hz:1~15fps)/720P/D1/640×360(60Hz:1~30fps; 50Hz:1~25fps) |
| Third Stream |
720P(60Hz/50Hz:1~15fps)/ D1/VGA/640×360/CIF/480×240(60Hz:1~30fps; 50Hz:1~25fps) |
| Bit Rate |
64 Kbps ~12 Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A / U |
| Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Network |
RJ 45 10M/100M self-adaptive Ethernet port |
| Video Output |
No |
| Audio |
1CH audio input; 1CH audio output; 1CH built-in speaker; 1CH built-in microphone |
| Alarm |
1CH alarm input; 1CH alarm output |
| Storage |
Built-in micro SD card slot; up to 256GB |
| Reset |
Yes |
| Remote Monitoring |
PVMS Plus |
| Web Browser |
IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ |
| Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro-SD card storage |
| Smart Alarm |
Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable connection, audio alarm, light alarm |
| General Function |
Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, smart supplement light, disarming |
| PoE |
Yes, IEEE802.3af |
| Supplement Light Range |
IR range: 50 m White light range: 50 m |
| Ingress Protection |
IP67 |
| Smart Event |
Line crossing, region intrusion/entrance/exiting (human/vehicle classification) loitering detection, illegal parking detection, abandoned/ missing object detection |
| Statistics |
Target counting by line/area, heat map |
| Exception Detection |
Scene change, video blur and abnormal color detection, audio exception |
| Face Detection |
Face detection and face capture |
| Video Metadata |
Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature |
| Power Supply |
DC12V/PoE |
| Power Consumption |
< 11.5W |
| Storage Conditions |
– 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions |
– 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) |
217.7 × 80.5 × 80.3 |
| Weight ( net ) |
Approx. 0.68KG |
| Installation |
Ceiling mounting; wall mounting |
| Certificate |
CE, FCC |
| Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
