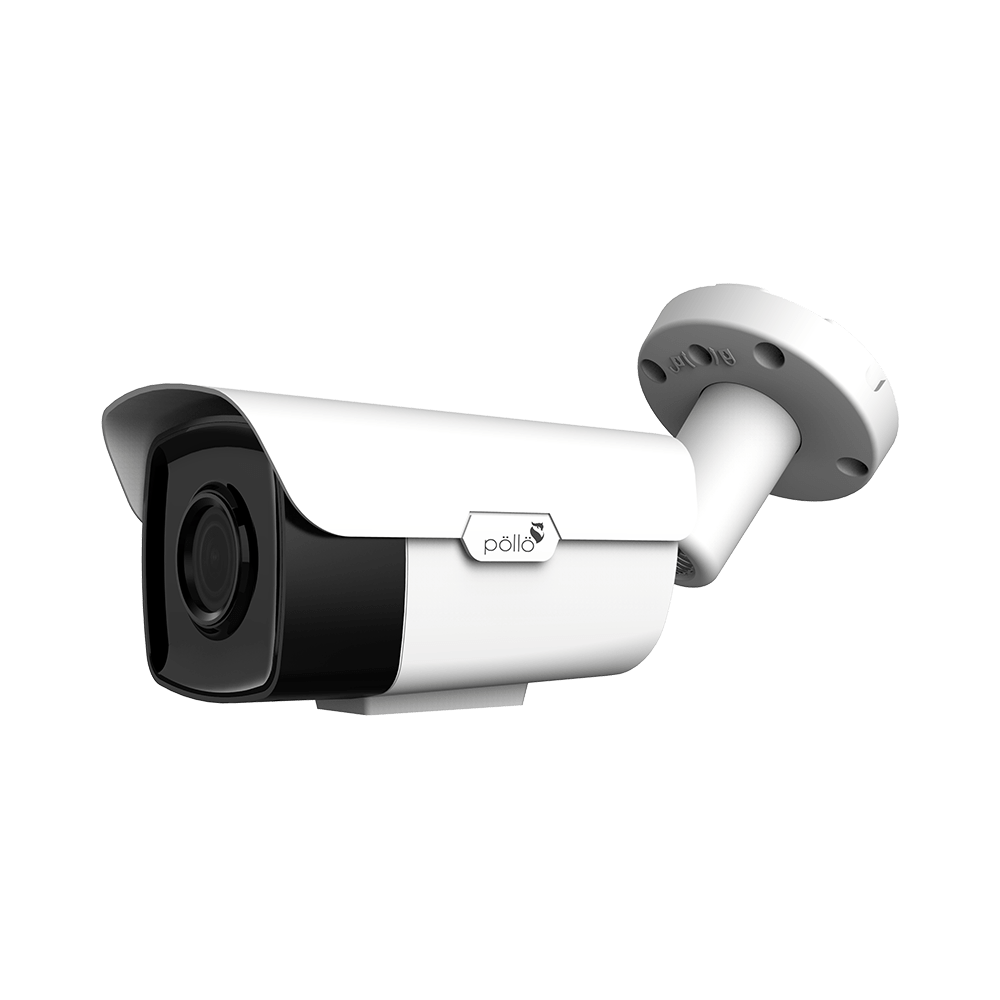

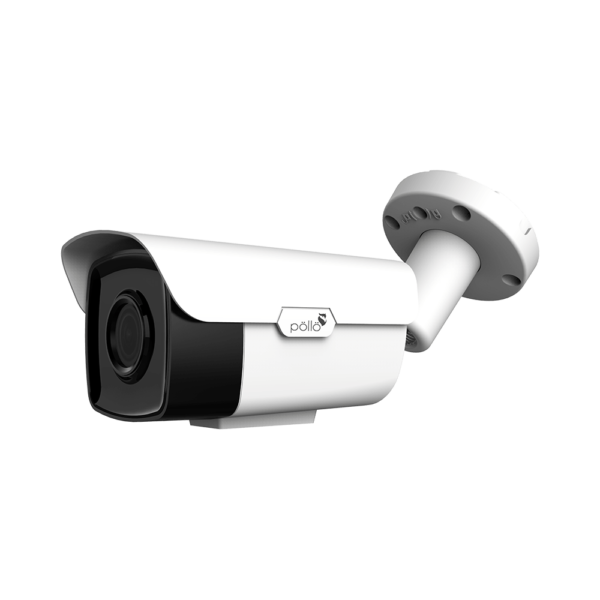

PLC-328M-IR8 PR
PLC-328M-IR8 PR
PLC-328M-IR8 PR
Bullet 8 MP
Pro Series
• 1/2.8” Full HD CMOS Sensor
• 80 m IR
• Output: AHD/CVI/TVI
• 3.6mm/6mm Lens
• IP67
Description
| Model No. | PLC-328M-IR8 PR |
|---|---|
| Image Sensor | 1/2.8” Full HD CMOS Sensor |
| Image Resolution | 8 MP: 3840 * 2160, 2 MP: 1920 * 1080 |
| TV System | PAL/NTSC |
| Electronic Shutter | Auto/Manual |
| Scanning System | Progressive Scan |
| Focal Length | 3.6 mm / 6mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| IR Cut Filter | Yes |
| Infrared LED | 42µ x 6PCS |
| Infrared Distance | 80 m |
| IR Power On / Off | AGC Auto-control |
| Day/Night | Yes |
| OSD Menu | Yes |
| WDR | DWDR |
| UTC | Yes |
| Noise Reduction | DNR |
| Coaxial Audio | YES (only TVI) |
| White Balance | Auto/Manual |
| Gain Control | Auto |
| Housing | Metal, IP67 |
| Bracket | Yes |
| Operation Temperature | -10 ℃ – +60 ℃ RH 95% Max. |
| Storage Temperature | -20 ℃ – +60 ℃ RH 95% Max. |
| Power Source | DC12V±10%, 900mA |
| Dimension | 220(W) x 105(H) x 109(D)mm |
| Weight | 2150g |
| PLC-328M-IR8 PR | Data Sheet of PLC-328M-IR8 PR |
|---|
