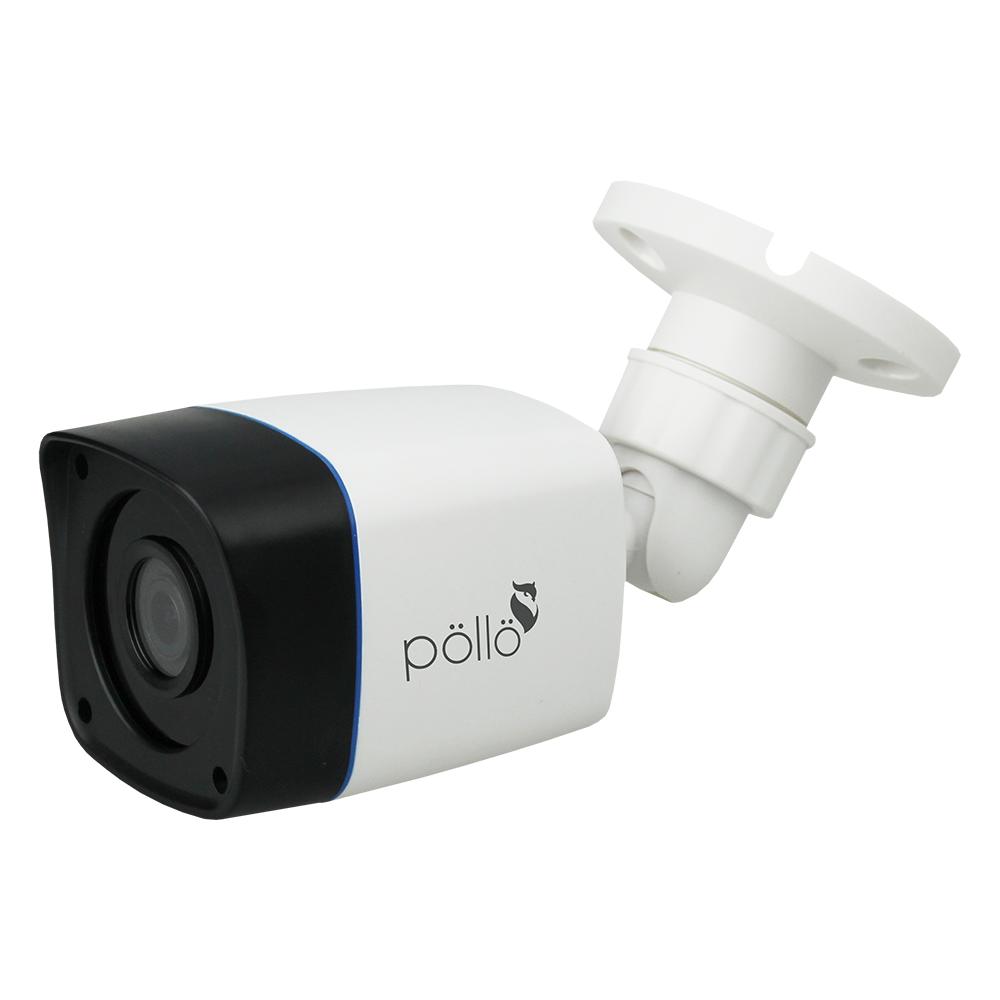

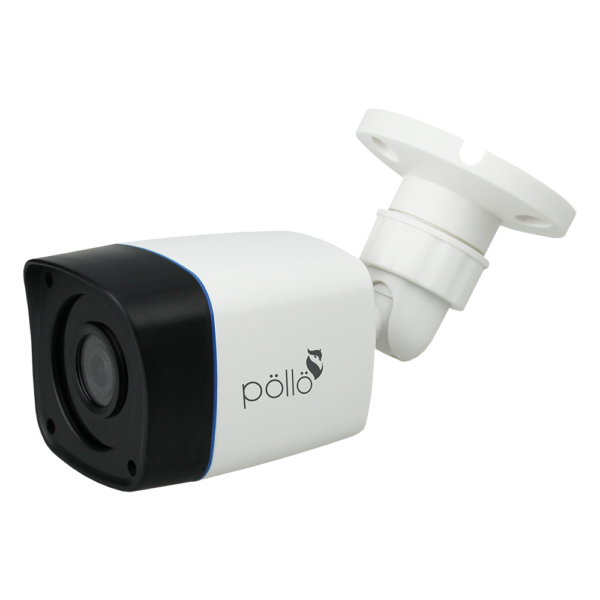

PLC-325P-IR2-PR-E

Description

Model Name	PLC-325P-IR2-PR-E
Video Output Mode	AHD/TVI: 5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps
Image Sensor	1/3″ Full HD CMOS Sensor
Image Resolution	5 MP: 2592 * 1944, 4 MP: 2560 * 1440, 2 MP: 1920 * 1080
TV System	PAL/NTSC
Electronic Shutter	AUTO
Scanning System	Progressive Scan
Focal Length	3.6 mm
Focus Control	Fixed
Lens Type	Fixed
IR Cut Filter	Yes
Infrared LED	14 µ x 18 pcs
Infrared Distance	20 m
IR Status	AGC Auto-control
Day/Night	Yes
OSD Menu	Yes
WDR	DWDR
UTC	YES
Noise Reduction	DNR
White Balance	AUTO/MANUAL
Gain Control	AUTO
Housing	Plastic, IP66
Bracket	YES
Operation Temperature	-10 ℃ – +60 ℃ RH 95% Max.
Storage Temperature	-20℃ ~ +60℃ RH95% Max
Power Source	DC12V±10%, 550mA
Dimension	160.8(W) x 62(H) x 62(D)mm
Weight	380g
