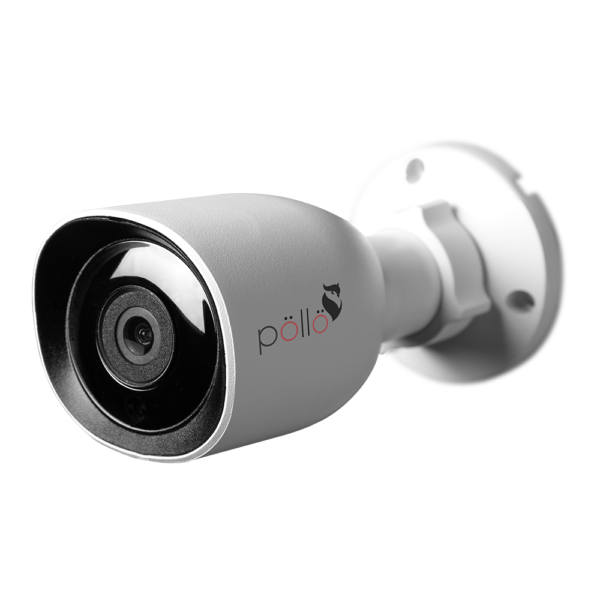

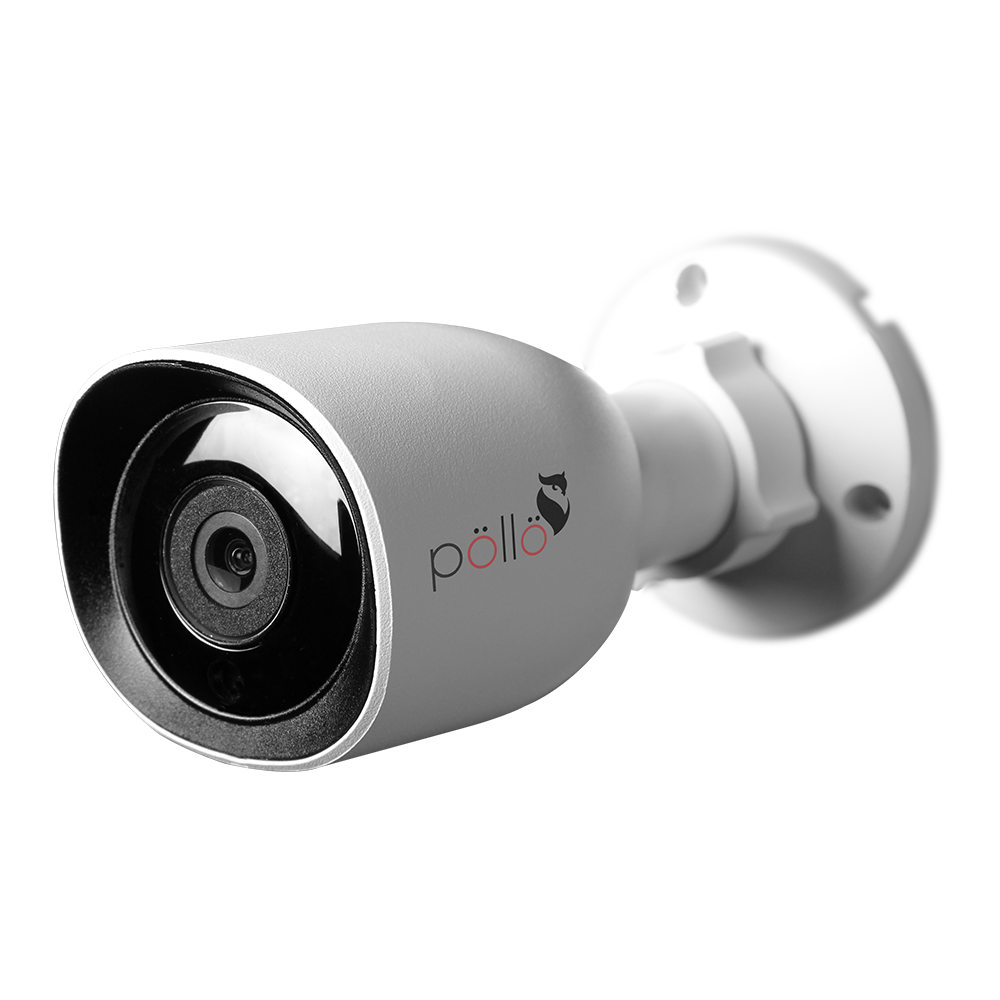

PLC-325M-IR3

Description

Image Sensor	1/2.5” 5 MP HD Colour Image Sensor CMOS
Signal System	PAL/NTSC
Horizontal Resolution	5 MP (2560 x 1920)
Lens	3.6mm
IR Range	Up to 30 m IR
Min. Illumination	0.01 Lux (IR LED on), 0.1 Lux (IR LED off)
Electronic Shutter	1/50 s (1/60 s)-1/100,000 s (Auto/Fixed)
Video Output	AHD/TVI 5 MP 20 fps/12.5 fps AHD/TVI/CVI 4 MP 30 fps/25 fps
Exposure Auto	Auto
Auto-gain	Yes
White Balance	Auto
BLC	Auto
Gamma Correction	0.45
S/N Ratio	≥50 dB
DNR	2 DNR
Video Output	1.0 VP – P Composite Output (75Ω / BNC)
Frame Rate	30 fps (60 Hz, 25 fps (50 Hz))
D&N	Support ICR
Power Consumption	1.2 W (4 W After IR LED is Powered on)
Housing	Metal , IP66
Power Source	DC 12 V (+/-15%)
Working Temperature	-20℃ – 50℃, 10% – 90% (Humidity)
Dimension	139 mm * 63 mm * 63 mm
Working Humidity	≤95% RH, No Dew
Weight	0.39 Kg
