| Model No. |

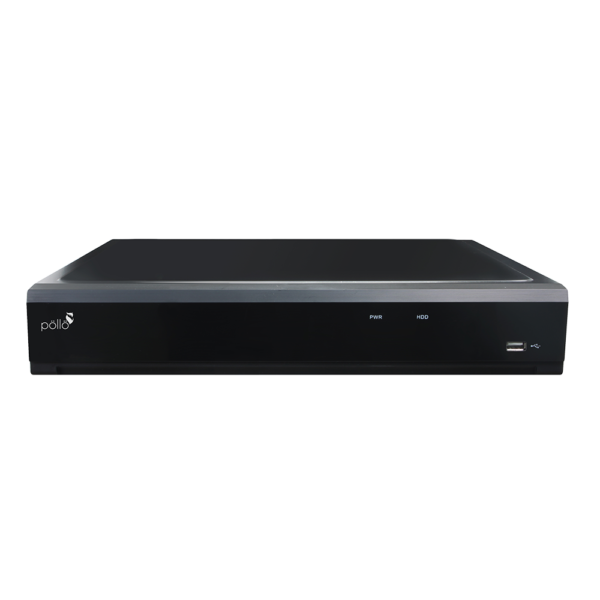

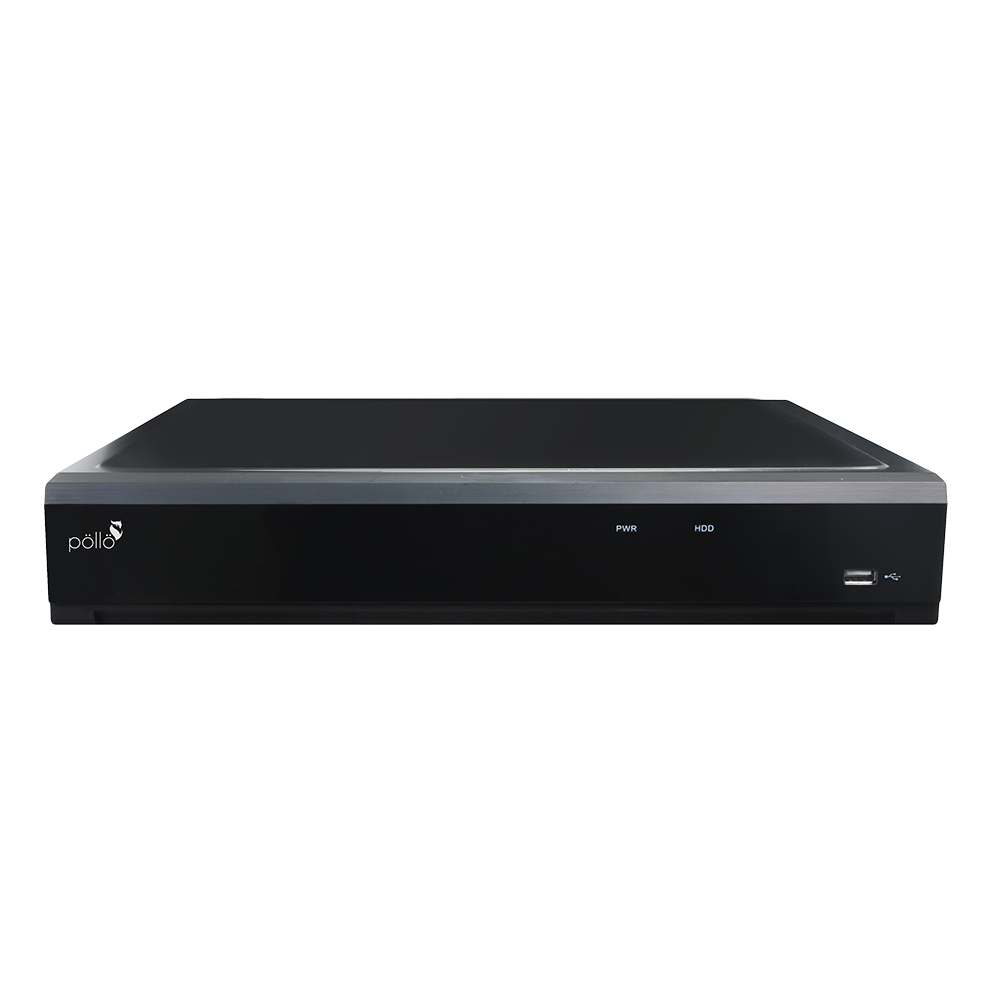

PLC-1516H1/PR |
| Inputs |
16Mbps ~32Mbps, IP Bandwidth default is 8Mbps, |
| Bandwidth out |
64Mbps |
| Analog video-input |
16CH inputs |
| IP Video Input |
4ch, (only IP up to 20ch) |
| Composite Video Input |
up to 20 ch (Analog video + IP video) |
| Compression |
Audio: G.711a; Video: H.264/H.265 |
| Display resolution |
Analog :5MP-Lite (1280*1944): 12fps;1080N/720P/960H IP :1080P/720P |
| Speed |
Analog :5MP-Lite (1280*1944): 12fps (each ch)1080N (960*1080) :15fps (each ch);720P:15fps (each ch) IP: PAL:25fps (each ch) / NTSC: 30fps (each ch) |
| Event |
MD (Sensitivity Level 1~8) Video loss Beep, Email, Push notification to Mobile APP |
| Playback function |
Fast forward / backward (2x, 4x, 8x,16x) Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
| Playback |
5MPlite:90fps （Max 6CH playback）;1080P: 160fps（Max 8CH playback）;720P:320fps Max 8CH playback） |
| VGA |
N/A |
| HDMI |
1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, EDID） |
| Ethernet |
1 RJ45 10/100Base-T |
| USB |
USB2.0*2(front) |
| Audio |
N/A |
| HDD |
1 SATA HDD, up to 8TB |
| Dimension (WxDxH) |
300X227X53mm |
| Input Voltage/Current |
DC12V/2A |
| Power consumption (excluding hard disk) |
8W |
| Operating Temperature/Humidity |
Temperature: 0°C~+40°C (32°F ~ 104°F) ,Humidity : Less than 90%RH |
