PLC-1504H1/PR
PLC-1504H1/PR
PLC-1504H1/PR

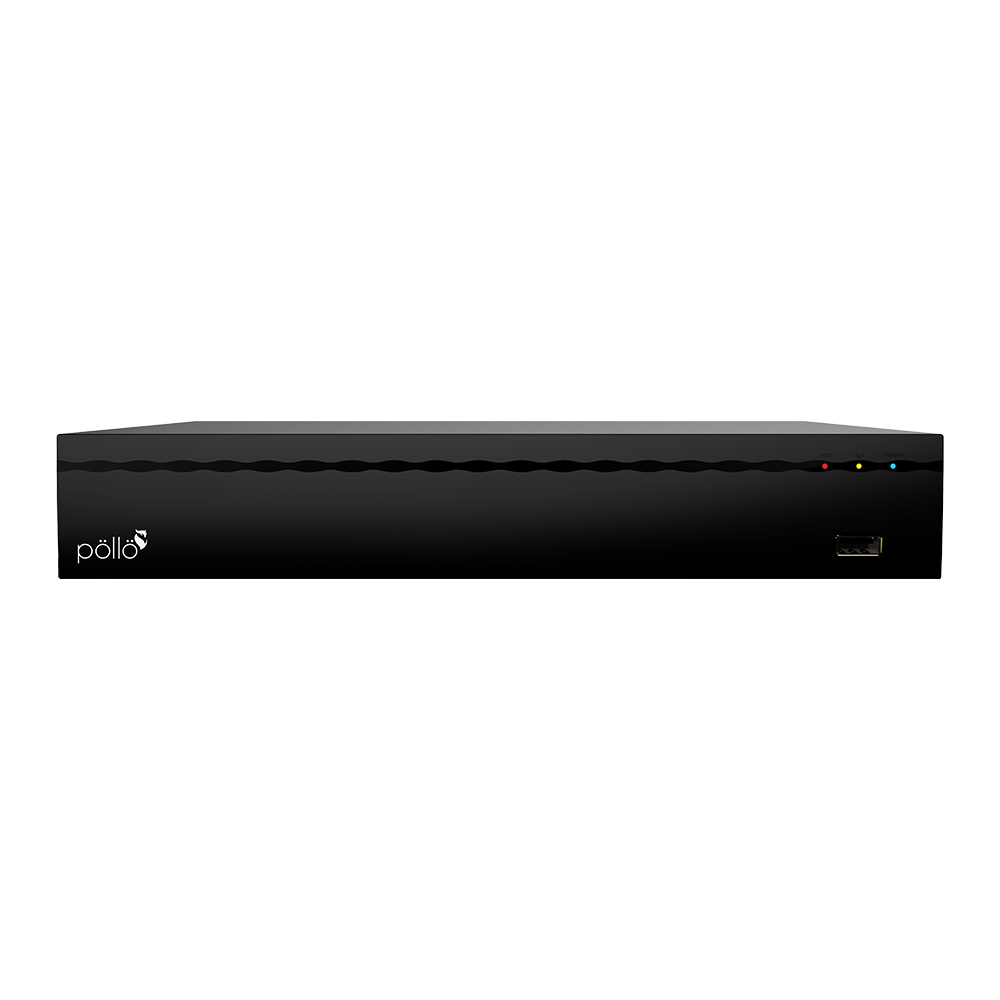

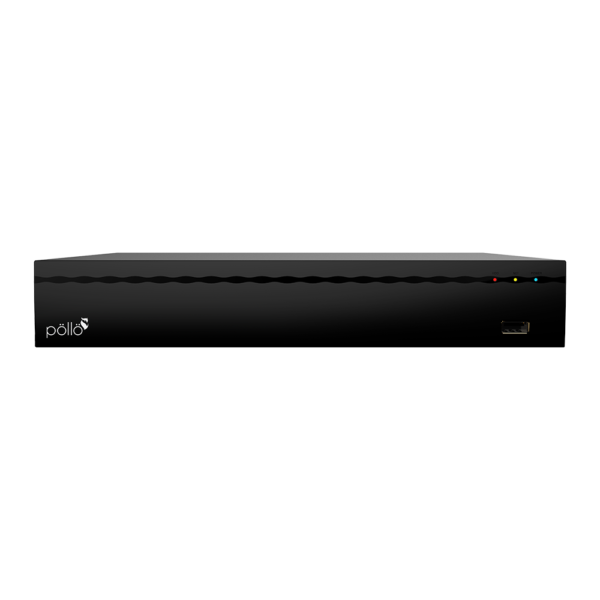

4 Channel Digital Video Recorder
• 04 Channel Input
• 5 MP Resolution
• AHD/TVI/CVI/IP
• H.265+
• Output: HDMI, VGA & CVBS
• 1 SATA upto 8TB
Description
| Model Name | PLC-1504H1/PR |
|---|---|
| Main Processor | HI3520DV400 |
| Operating System | Embedded Linux |
| Input | Normal Mode: Analog: 5 MP: AHD/TVI/CVI: 4 MP;AHD/TVI: 3 MP: AHD/TVI/CVI: 1080p/720p: Analog: 960H) Lite Mode: Analog: 4 * (AHD/TVI/CVI: 1080p/720p; Analog: 960H) Analog + Network: 2 * Analog (1080p) + 7 * Network (Max. 5 MP) Network: 12 * 5 MP/4 MP/3 MP/1080p/960p/720p (Total Incoming Bandwidth ≤48 Mbps) |
| Input | 4 Channel BNC |
| Signal Type | CVBS/AHD/CVI/TVI 2.0/TVI 3.0/Network |
| Output | 1 HDMI, 1 VGA |
| Audio Input | 4 Channel, RCA |
| Audio Output | 1 Channel, RCA |
| Motion Detection | 4 Channel (Maxx 16 Channel In Pure Network Mode) |
| Trigger Events | Recording, Email, Screen Tips, Buzzer, Push Notifications (Motion Detection) |
| Email Alarm | Send Image to Designated E-mail |
| Interface | RS485 |
| Protocol | Pelco – D, Pelco – P |
| Baud Rate | 110 – 921600 |
| Address | 0 – 255 |
| VGA | Resolution: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| HD Output | Normal Mode: Resolution: 2560 * 1440/30 Hz, 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz – Lite Mode: Resolution: 3840 × 2160/30 Hz, 2560 x 1440/30 Hz, 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Display Split | 4 Channel/1 Channel |
| Privacy Masking | 3 Rectangular Zones (Each Camera) |
| Privacy Masking | 3 Rectangular Zones (Each Camera) |
| OSD | Camera Title, Time, Video Loss, Alarm, Motion detection, Recording |
| Video Compression | H.265/H.265+/H.264/H.264+ |
| Audio Compression | G.711u |
| Resolution | 5 MP (2592 × 1944), 8 MP_LITE (1920 × 2160), 5 MP_HALF (1296 × 1944), 4 MP (2560 × 1440), 4 MP_HALF (1280 × 1440), 3 MP (2048 × 1536), 1080p (1920 × 1080), 720p (1280 × 720), 960H (P: 960 × 576/N: 960 × 480) |
| Video Quality | Worst/Worse/Ordinary/Well/best |
| Record Rate | Normal Mode: Analog: PAL: 8 MP_LITE (1920 × 2160, 4 * 8 fps), 5 MP (2592 × 1944, 4 * 6 fps), 5 MP_HALF (1296 × 1944, 4 * 10 fps), 4 MP (2560 × 1440, 4 * 8 fps), 4 MP_HALF (1280 × 1440, 4 * 15 fps), 3 MP (2048 × 1536, 4 * 9 fps), 1080p (1920 x 1080, 4 * 15 fps), 720p (1280 × 720, 4 * 25 fps), 960H (960 × 576, 4 * 25 fps) – NTSC: 8 MP_LITE (1920 × 2160, 4 * 8 fps), 5 MP (2592 × 1944, 4 * 6 fps), 5 MP_HALF (1296 × 1944, 4 * 10 fps), 4 MP (2560 × 1440, 4 * 8 fps), 4MP_HALF (1280 × 1440, 4 * 15 fps), 3 MP (2048 × 1536, 4 * 9 fps), 1080p (1920 x 1080, 4 * 15 fps), 720p (1280 × 720, 4 * 25 fps), 960H (960 × 480, 4 * 25 fps) – Lite Mode: Analog: Half 1080p (960 x 1080, 4 * 25 fps), 720p (1280 × 720, 4 * 25 fps), 960H (P: 960 × 576, 4 * 25 fps/N: 960 × 480, 4 * 30 fps) – Pure IP (H.265): PAL: 5 MP @ 8 × 25 fps, 4 MP @ 12 x 25 fps, 3 MP @ 12 × 25 fps, 1080p @ 12 × 25 fps, 960p @ 12 × 25 fps, 720p @ 12 × 25 fps, D1 @ 12 × 25 fps – NTSC: 5 MP @ 8 × 30 fps, 4 MP @ 12 × 30 fps, 3 MP @ 12 × 30 fps, 1080p @ 12 × 30 fps, 960p @ 12 × 30 fps, 720p @ 12 × 30 fps, D1 @ 12 × 30 fps |
| Record Mode | Manual/Timer/Motion Detection |
| Decode Capability | 2 Channel 1080p @ 30 fps |
| Sync Playback | Pure Analog: 4 Channel 5MP @ 6 fps, 4 Channel 8M_Lite @ 8 fps, 4 Channel 4 MP @ 8 fps, 4 – Channel 3 MP @ 9 fps, 4 Channel 1080p @ 15 fps, 4 Channel 1080N @ 25 fps – Mix Mode: 1 Channel 5 MP @ 30 fps, 1 Channel 4 MP @ 30 fps, 1 Channel 3 MP @ 30 fps, 2 – Channel 1080p @ 30 fps, 3 Channel 1080p @ 15 fps – Pure IPC: 1 Channel 5 MP @ 30 fps, 1 Channel 4 MP @ 30 fps, 1 Channel 3 MP @ 30 fps, 4 – Channel 1080p @ 30 fps, 4 Channel 960p @ 30 fps, 4 Channel 720p @ 30 fps |
| Remote Playback | 4 Channel/1 Channel |
| Search Mode | All, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Fast Play, Rewind, Digital Zoom, Full Screen |
| Smart Phone Playback | 4 Channel |
| Backup Mode | USB Device (Format FAT 32)/Network/FTP |
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, P2P |
| DDNS | DynDNS, Change-IP, No-IP, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE |
| Web Browser | IE8 – 11, Google Chrome (Lower Than Ver44), Firefox (Lower Than Ver53) |
| CMS Software | Supports Windows 7/ Windows 8/Windows 10 |
| Extra Stream | CIF (1 – 25 fps) |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Interface Type | 1 SATA Interface |
| Storage Capacity | 1 SATA Hard Disk (2.5″/3.5″ SATA, Up to 8 TB) |
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farsi German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek |
| UTC Control | Yes |
| Interface | 2 USB 2.0 Interfaces, RS485 |
| Power consumption | DC 12 V ≤6 W (Without Hard Disk) |
| Working Environment | -10℃ – 55℃/10 – 90% |
| Dimension (W × D × H) | 260 * 215 * 43 (mm) |
| Weight | 2 kg (Without HDD) |
| PLC-1504H1/PR | Data Sheet of PLC-1504H1/PR |
|---|
